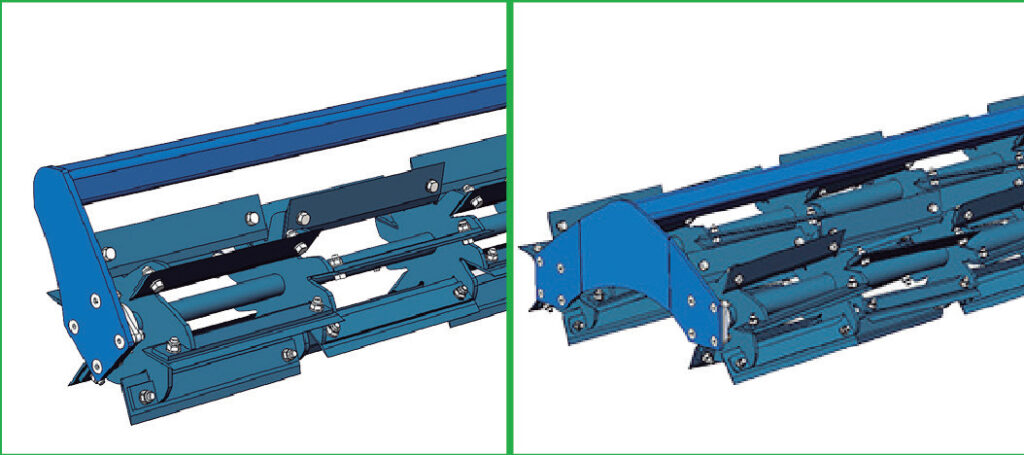

CUTTING SHAFT AGRICUT
A large abundance of organic matter causes difficulties in tillage. Cutting rollers make this job easier.
Shaft mounted front or rear as main tool. Ideal for chopping stubble and corn residues (especially important for corn borer control), sunflowers, rapeseed and large masses of cover crops.
The low traction resistance of the equipment at a high working speed ensures an exceptional processing result.
AVAILABLE IN BOTH SINGLE SHAFT AND DOUBLE SHAFT OPTIONS.
5 AND 6 METER MOUNTED VEHICLES
IN TRANSPORT HAVE A WIDTH
OF JUST OVER TWO METERS
| Parameters | 3ML | 3M | 5MFL | 5MF | 6MFL | 6MF | 6TF | 8TF |
| Working width, m | 3 | 3 | 5 | 5 | 6 | 6 | 6 | 8 |
| Type | mounted | trailed | ||||||
| Number of rows | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 1 |
| Shaft diameter, mm | 410 | 560 | ||||||
| Machine weight, kg | 640 | 1040 | 1280 | 1650 | 1360 | 1760 | 1450 | 1880 |
| Required tractor power, hp | 100 | 120 | 150 | 170 | 160 | 180 | 100 | 150 |
| Working speed, km/h | 12-20 | 15-20 | ||||||
Transport position, mm -length -width -height |
750 3000 1240 | 1200 3150 1200 | 1250 2120 2900 | 1250 2040 3000 | 1250 2120 3400 | 1250 2040 3500 | 4450 2300 1700 | 5450 2300 1700 |
