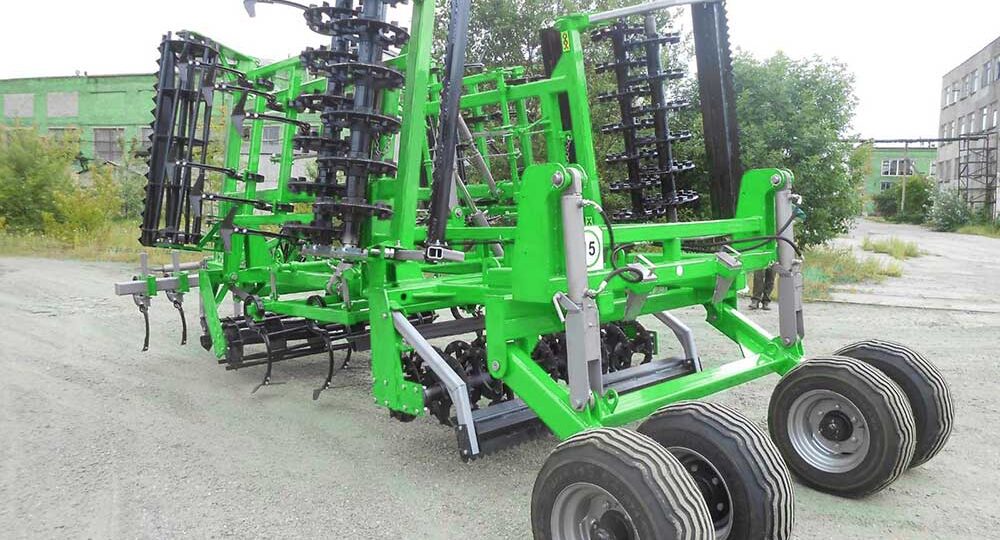

Pre-sowing combination unit Agriflat

The Agriflat combined unit is designed for pre-sowing tillage and performs in one pass crushing clods, loosening the soil, cutting weeds, leveling the field surface and compacting the soil.

The unit provides ideal loosening and eliminates uneven seedlings after sowing. Creates an optimal soil structure: coarse on the surface, fine in the seed sowing zone, more compacted in the root system formation zone.

Advantages

High-quality and reliable working parts of the unit – paws with a working width of 260 mm on stands with springs from European manufacturers.
Reinforced track eradicators.
Convenient adjustment of processing depth.
The overlap between the paws is at least 40 mm, which ensures 100% cutting of weeds.

Parameters	3	4	5	6	8	9
Tractor power from hp	80	150	180	210	250	310
Working width, m	3	4	5	6	8	9
Operating speed, km/h	8,0-12,0
Tillage depth, cm	4-12
Total weight of the unit, kg	2500	3500	4400	5300	7000	7500
Overall dimensions in working position, mm – length – width – height	7000 3100 1400	7700 4100 1600	7700 5000 1960	7700 6000 1960	7700 8200 1400	7070 9200 1400
Overall dimensions in transport position, mm – length – width – height	6800 3100 1500	7500 4100 1700	7500 3100 3600	7500 3100 4100	7500 4500 4000	7500 4400 4500
Number of working elements	15	20	24	30	39	45
Paw width, mm	260
Transport speed, km/h	15
